    ULTRA-SMALL TYPE HYDRAULIC PUMP   1500 ~ 2000cc

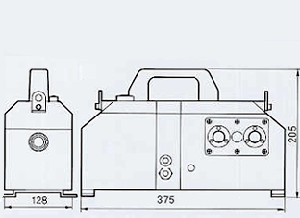

800cc ULTRA-SMALL HYDRAULIC PUMP 800cc ULTRA-SMALL HYDRAULIC PUMP

  • Reservoir Capacity : 1500 ~ 2000cc

  • Output Flow Rate : 0.35 ~ 2.0 l/min.

  • Maximum Pressure:700bar

  • For use of both single Soleloid Valve.

  • Aluminum Case

  • Remort Control Switch

    • Specfication

    Model Pressure
    Rating (Bar)         		Output Flow
    Rate(l/min)    		 Voltage
    220(V)Pole
    		 Electric
    Motor    		 Required
    Oil
    (liter)    		 Reservoir
    Capacity
    (liter)    		 Weight
    (kg)
    High
    Pressure    		 Low
    Pressure    		 High
    Pressure    		 Low
    Pressure    		 kw Pole RPM
    SDMP-3000S 700 10 0.4 2.0 1P 0.4 4 2000 1.5 2 10.5

    Custom made for special requirements
