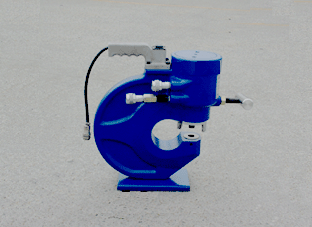

  HYDRAULIC PUNCH M/C   23ton, 32ton, 45ton, 45ton, 60ton, 75ton

  • Max t, Max Punching Hole Size(mm),Depth(D),Force(t)Spec. :
          1 : 10t * 20.5 * D75mm * 23t
          2 : 12t * 24 * D75mm * 32t
          3 : 16t * 24 * D75mm * 45t
          4 : 16t * 24 * D110mm * 45t
          5 : 20t * 24 * D110mm * 60t
          6 : 20t * 31 * D110mm * 75t

  • Maximum Pressur: : 700bar

  • Max Punching Hole Size : 31(mm)

  • Punching through I-Beams, H-Beams, Mild steel, etc.
  • All Punching Hole Sizes are subject to change with or without notice
  • Specfication

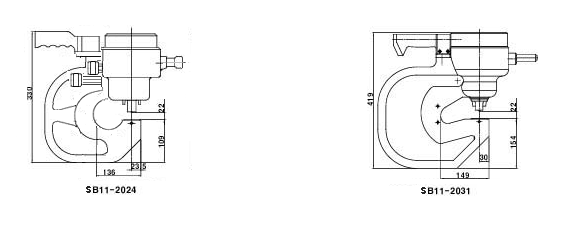

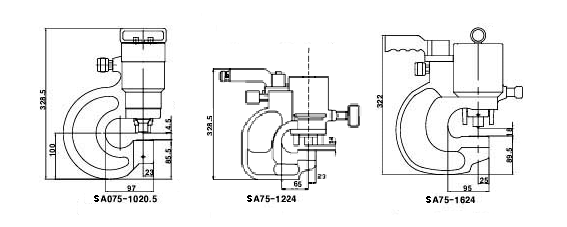

    Model Max.
    Punching
    Diameter(
    mm)
    Max.
    Punching
    Thickness
    (mm)
    Max.
    Center
    Depth
    (mm)
    Time
    for 1
    Hole
    Cylinder
    Capacity
    (tons)
    Weight
    (kgs)
    SA075-1020.5(S) 20.5 10 75 1HP 5sec. 23 13
    SA075-1224(D) 24 12 75 1HP 5sec. 32 16.5
    SA75-1624(D) 24 16 75 2HP 4sec. 45 25
    SA11-1624(D) 24 16 110 2HP 4sec. 45 32
    SB11-2024(D) 24 20 110 2~3HP 6~5sec. 60 35
    SB11-2031(D) 31 20 110 2~3HP 8~6sec. 75 75

    Hyd Punch Hyd Punch Chip

    Punching Dia

    Model Punching
    Dia(
    mm)
    Punching
    Thickness
    SA075-1020.5(S) 10.5, 13.5, 17.5, 20.5 4Sets
    SA075-1224(D) 10, 12, 14, 16 4Sets
    SA75-1624(D) 16, 18, 20, 22, 24 5Sets
    SA11-1624(D) 16, 18, 20, 22, 24 5Sets
    SB11-2024(D) 18, 20, 22, 24 4Sets
    SB11-2031(D) 18, 20, 22, 24, 28, 31 6Sets

    Custom made for special requirements
