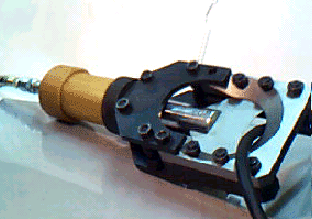

    HYDRAULIC CABLE CUTTER        Cable Max. Cutting size : 85 ~ 100mm

HYDRAULIC CABLE CUTTER

  • Cable size : 85 ~ 100mm

  • Maximum Pressure : 700bar

  • HYDRAULIC ELECTRIC WIRE ,

    CABLE ( Copper , Aluminum ) CUTTER

    • Specfication

    Model Cable Max.
    Cutting(mm)    		 Copper
    (mm)    		 Aluminum
    (mm)    		 Operation
    Method     		Weight
    (kgs)
    SDCC-75W 85 28.8 37.5 Hand & Moter Pump 6.5
    SDCC-100W 100 41.6 46.6 Hand & Moter Pump 12.5

    Custom made for special requirements
