Maximum Torque : 250 ~ 4000kg.m Active Lever Size : 66 ~ 180mm Bolt Range : M41 ~ M185 Maximum Pressure : 600bar Fitted with single acting spring return cylinders for used Bolts/Nuts connection

Specfication

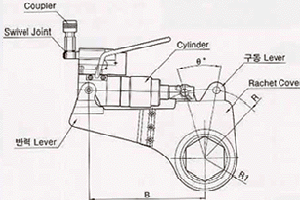

Model	Max Pressure (Bar)	Max Torque (kg/m)	Active Lever R (mm)	Driving Angle ()	Dimension (mm)				Deteiled Driving ()	Weight (kgs)
					B	R1	L1	L2
SL-250N	600	250	66	37	175	33	49.5	19.5	3	5
SL-500N	600	500	91.5	27	194	40	56	25	3	7.1
SL-1000N	600	1000	115	25	219	47.5	64	29	3	10.5
SL-2000N	600	2000	135	21	218.5	55	73	33	3	18
SL-4000N	600	4000	180	30	347.4	70	89	41	3	37.1

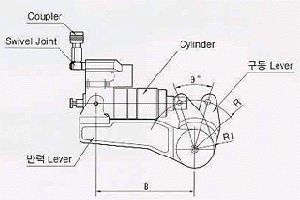

Hydrauric Wrench [ Center Hole Type ]     Active Lever Size:110 ~ 175mm

Maximum Torque : 250 ~ 2000kg.m Active Lever Size : 110 ~ 175mm Bolt Range : M41 ~ M185 Maximum Pressure : 480bar Fitted with single acting spring return cylinders for used Bolts/Nuts connection

Specfication
Model	Max Pressure (Bar)	Max Torque (kg/m)	Active Lever R (mm)	Active Lever R (mm)	Driving Angle ()	Deteiled Driving ()	R1 (mm)	Weight(kgs)
SL-250CHN	460	250	110	203	27	3	41.5	7
SL-500CHN	520	500	133	214	22	3	47.0	10
SL-1000CHN	480	1000	150	235	19	4	60.0	15
SL-2000CHN	480	2000	175	254	16	4	74.0	24
