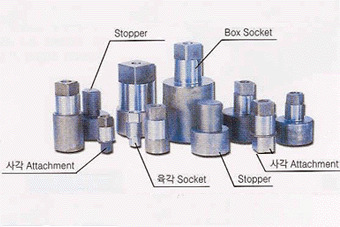

[ Hydraulic Wrench Socket , Stopper ]

[ Wrench Boxer Socket ]           [ Wrench Drive Socket ]>

Spec (Small Size)
Bolt Size	In.	1	1⅛	1¼	1⅜		1½		1⅝		1¾		1⅞		2		2¼		2½
	mm		30	33		36		39		42		45		48		52	56	60	64
Innet	B	41	46	50	54	55	58	60	63	65	67	70	71	75	77	80	85	90	95
Dep.	H	29	30	33	34	36	37	39	40	42	43	46	47	48	52	54	57	60	65
outnet	D	57	69	76	79	83	87	88	96	99	104	108	108	116	119	126	132	138	147

Spec (Large Size)
Bolt Size	In.		2¾	3		3¼	3½	3¾	4		4¼	4½		4¾	5
	mm	68	72	76	80	85	90	95	100	105	110	115	120		125	130
Innet	B	100	105	110	115	120	130	135	145	150	155	165	170	175	180	185
Dep.	H	68	72	75	80	84	88	92	96	102	106	110	114	116	118	122
outnet	D	150	158	168	177	185	190	198	217	226	233	245	254	259	266	269
