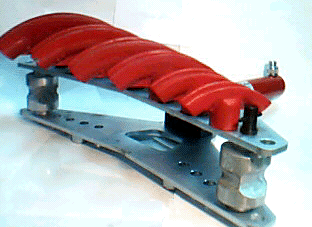

    HYDRAULIC PIPE BENDERS         2",3",4"

  • Capacity:2",3",4"

  • Maximum Pressure:700bar

  • Stroke:255-300mm

  • Cylinder:10-20tons

    • Specfication

    Model Max.
    Capacity
    (inch)    		 Max.
    Wall
    Thickness
    (mm)    		 Max.
    Bending
    Angle
    (ĄŁ )    		 Dimension
    (mm)    		 Bending
    Shoes
    (Qt'y)    		 Cylinder
    Capacity
    (tons)    		 Weight
    (kgs)
    SDPB-2 2"(50A) 3.8 90 750 X 700 X 250 1/2"~2" 10 40
    SDPB-3 3"(80A) 4.5 90 850 X1050 X 300 3/4"~3" 15 60
    SDPB-4 4"(100A) 4.9 90 1150 X 1300 X 300 1 1/4"~4" 20 170

    Specfication

    Shoe Size Gas Pipe
    mm (A) inch (B) Out-Dia (mm) In-Dia (mm) Thickness(mm) Radius(mm)
    15 1/2" 21.7 16.1 2.8 60
    20 3/4" 27.2 21.6 2.8 80
    25 1" 34 27.6 3.2 100
    32 1 1/4" 42.7 35.7 3.5 130
    40 1 1/2" 48.6 41.6 3.5 160
    50 2" 60.5 52.9 3.8 220
    65 2 1/2" 76.3 67.9 4.2 320
    80 3" 89.1 80.7 4.2 425
    90 3 1/2" 101.6 93.2 4.2 550
    100 4" 114.3 105.5 4.5 600

    Specfication

    Shoe Size Elec. Pipe
    mm (A) inch (B) Out-Dia (mm) In-Dia (mm) Thickness(mm) Radius(mm)
    16 1/2" 21 16.4 2.3 75
    22 3/4" 26.5 21.9 2.3 90
    28 1" 33.3 28.3 2.5 130
    36 1 1/4" 41.9 42.8 2.5 195
    42 1 1/2" 47.8 42.8 2.5 230
    54 2" 59.6 54 2.8 270
    70 2 1/2" 75.2 69.6 2.8 450
    82 3" 87.9 82.3 2.8 500
    92 3 1/2" 100.7 93.7 3.5 500
    104 4" 113.4 106.4 3.5 680

    Custom made for special requirements
