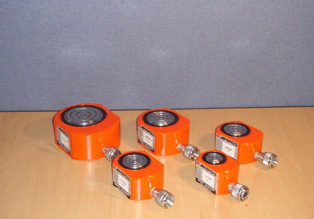

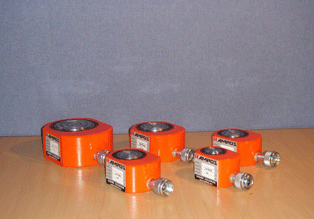

    LOW PROFILE CYLINDERS              10 ~ 100tons

  • Capacity : 10 ~ 100tons

  • Stroke : 10 ~ 15mm

  • Maximum Pressure:700bar

  • Hydraulic Coupler:3/8"NPT

  • Low profile cylinders are designed

    for use where there is a minimum

    of clearance for insertion of cylinders

  • From 10 to 100 tons capacity single-acting spring return

    • Specfication

    Model Cylinder
    Capacity
    (tons)    		 Stroke
    (mm)    		 Cylinder
    Effective
    Area
    (    )     		Oil
    Capacity
    (cc)    		 Retracted
    Height
    (mm)    		 Extended
    Height
    (mm)    		 Cylinder
    Out Dia.
    (mm)    		 Cylinder
    Bore Dia.
    (mm)    		 Base
    to
    Inlet
    Poet
    (mm)    		 Weight
    (kgs)
    A B C D E
    SDSR-1050 10 50 15.2 76 105 155 68 50 17 3.2
    SDSR-2050 20 50 28.3 141.5 105 155 88 60 17 5.9
    SDSR-3050 30 50 44.2 221 105 155 105 75 17 6
    SDSR-5050 50 50 63.6 318 109 159 127 90 17 15
    SDSR-10050 100 50 132.7 663 139 189 175 130 22 20.4
    SDSR-15050 150 50 201 1005 167 217 210 160 28 39
    SDSR-20050 200 50 283.5 1417 180 230 245 190 33 61

    Custom made for special requirements
