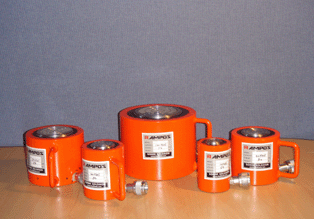

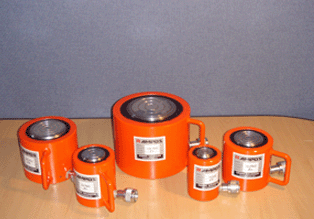

    SHORTY CYLINDERS                  10 ~ 200tons

  • Capacity : 10 ~ 200tons
  • Stroke : 50mm
  • Maximum Pressure:700bar
  • Hydraulic Coupler:3/8NPT
  • Compact, flat design for use where

    other cylinders will not fit

  • Specfication

    Model Cylinder
    Capacity
    (tons)
    Stroke
    (mm)
    Cylinder
    Effective
    Area
    (
    )
    Oil
    Capacity
    (cc)
    Retracted
    Height
    (mm)
    Extended
    Height
    (mm)
    Cylinder
    Out Dia.
    (mm)
    Cylinder
    Bore Dia.
    (mm)
    Base
    to
    Inlet
    Poet
    (mm)
    Weight
    (kgs)
    A B C D E
    SDJSR10-10 10 10 15.9 15.9 53 63 82 44 18 1.6
    SDJSR20-12 20 12 33.2 33.2 52 64 100 60 19 2.9
    SDJSR30-13 30 13 44.2 66.3 59 72 115 75 20 3.9
    SDJSR50-15 50 15 70.9 106.4 65 80 145 95 20 6.5
    SDJSR100-15 100 15 146.5 239.6 85 100 177 125 25 14

    Custom made for special requirements
