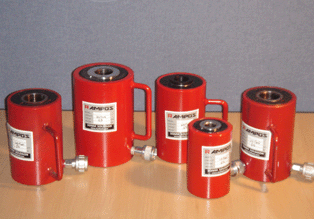

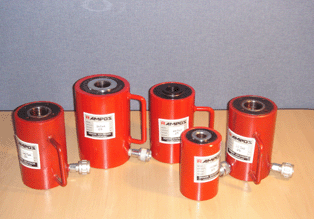

    SINGLE-ACTING CENTER HOLE CYLINDERS                 12 ~ 150tons

  • Capacity : 12 ~ 150tons

  • Stroke : 40 ~ 150mm

  • Maximum Pressure:700bar

  • Hydraulic Coupler:3/8"NPT

  • Designed for use with screws, rods, cables and pullers

    • Specfication

    Model Cylinder
    Capacity
    (tons)    		 Stroke
    (mm)    		 Cylinder
    Effective
    Area
    (    )     		Oil
    Capacity
    (cc)    		 Retracted
    Height
    (mm)    		 Extended
    Height
    (mm)    		 Cylinder
    Out Dia.
    (mm)    		 Center
    Hole Dia.
    (mm)    		 Weight
    (kgs)
    A B C D
    SDCH12-40S 12 40 17.6 70 130 170 70 20 3.5
    SDCH20-50S 20 50 31.6 158.4 162 212 98 27 7.6
    SDCH30-60S 30 60 47.7 286 180 240 118 33 11.6
    SDCH50-100S 50 100 74.5 745 260 360 159 54 28
    SDCH100-100S 100 100 144.3 2164 279 379 216 80 55
    SDCH150-150S 150 150 284.5 4267 390 540 270 100 120

    Custom made for special requirements
